EFD CORES

All employees of Encore Techmology Co., Ltd. provides high quality service to electronic industry, based on company's business philosophy of perseverence, innovation and responsibility.

AL: UNIT nH

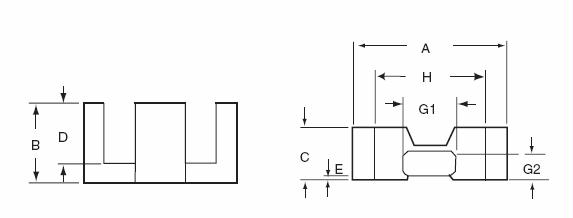

CORE SERIES Dimensions (mm) C1 mm-1 Le mm Ae mm2 Ve mm3 NP1 AL ±25% A B C D E G1 G2 H min EFD 9.5 9.5±0.3 4.75±0.15 2.3±0.15 2.95±0.20 4.00±0.15 1.20±0.10 6.80 3.23 22.08 3.13 69 140 EFD 10 10.5±0.3 5.20±0.10 2.7±0.10 3.75±0.15 0.2 4.55±0.20 1.45±0.05 7.65±0.25 3.29 23.70 7.20 171 500 EFD 12 12.5±0.3 6.20±0.10 3.5±0.20 4.55±0.20 0.2 5.40±0.15 2.0±0.10 9.00±0.25 2.50 28.50 11.40 325 700 EFD 15 15±0.40 7.50±0.20 4.65±0.20 5.5±0.25 0.2 5.30±0.15 2.4±0.10 10.65 2.27 34.00 15.00 510 700 EFD 20 20±0.55 10.0±0.20 6.65±0.20 7.7±0.25 0.17 8.90±0.20 3.5±0.15 14.80 1.52 47.00 31.00 1460 1200 EFD 20L 20±0.55 11.5±0.20 6.65±0.20 9.3±0.20 0.17 8.90±0.20 3.5±0.15 14.80 1.68 52.00 31.00 1612 1200 EFD 25 25±0.65 12.5±0.25 9.10±0.25 9.3±0.30 0.6 11.4±0.20 5.2±0.20 18.10 0.98 57.00 57.00 3300 2000 EFD 30 30±0.80 15.0 -0.10 +0.40 9.10±0.25 11.2 -0.10 +0.40 0.75 14.5±0.25 4.8±0.20 21.65 0.99 68.00 68.00 4700 2000

AL Values are measured at 10KHz 10mv 0.35m/m 2uew 100Ts
